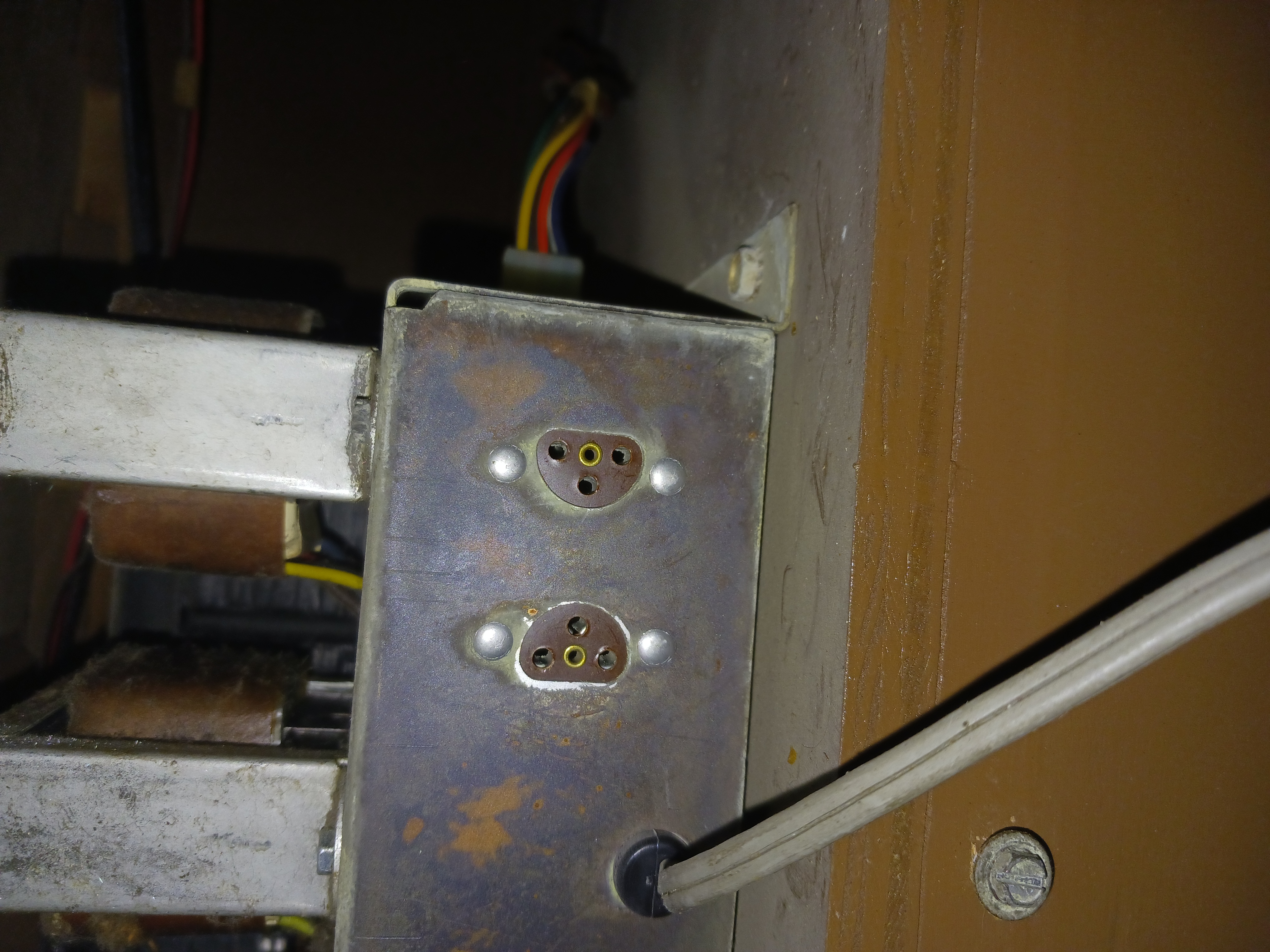

I need to find some bypass plugs for the RCA... there are 3 terminals , which ones do I jumper?... zero sound till I figure this out ...
Thanks
What are these?
-
hermitcrab
- Anchor Member
- Posts: 1504
- Joined: Mon Jul 12, 2021 2:49 am
- Location: Tri Cities Mich
- Contact:
What are these?
- Attachments
-
-
TC Chris
- Anchor Member
- Posts: 3611
- Joined: Tue Jul 13, 2021 3:50 am
- Location: Traverse City, MI
- Contact:
Re: What are these?
Trace 'em back?
Chris Campbell
Chris Campbell
-
Hi-Fi-Mogul
- Anchor Member
- Posts: 1306
- Joined: Sat Jul 10, 2021 1:53 am
- Contact:
Re: What are these?
Schematic Please !hermitcrab wrote: ↑Fri Dec 15, 2023 11:02 pm I need to find some bypass plugs for the RCA... there are 3 terminals , which ones do I jumper?... zero sound till I figure this out ...
Thanks
Hi-Fi-Mogul
-
hermitcrab
- Anchor Member
- Posts: 1504
- Joined: Mon Jul 12, 2021 2:49 am
- Location: Tri Cities Mich
- Contact:
Re: What are these?
I found the answer on audio karma , 1 and 3 jumper for sound the center or 2 is ground ... rca did some weird stuff ....
-
William
- Global Moderator
- Posts: 5153
- Joined: Fri Jul 09, 2021 12:42 pm
- Location: Hart, Michigan
- Contact:
Re: What are these?
I have those same plugs in mine also. I presume this is the unit you got north of you. I am anxious to watch your progress on this, as someday I need to do mine.
Bill
